Sanitary Sight Flow Indicators

Available Models:

Safe, Durable, Clean Viewing Of Liquid, Powder And Bulk Solid Systems Flows.

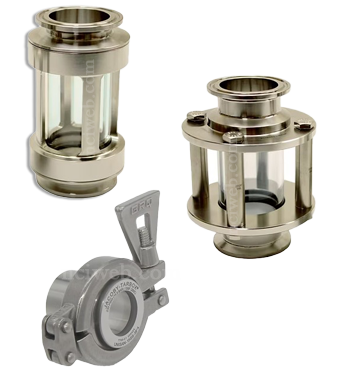

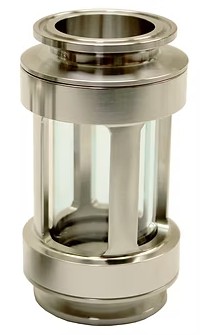

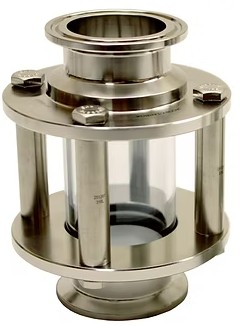

Jacoby Tarbox TRU-SAN 6000 Sight Flow Indicators are manufactured specifically for food handling.

All TRU-SAN 6000 indicators comply with 3-A Fittings Standards and will provide excellent, clear viewing of liquids, powders and many bulk solids.  These are the industry's first bull's eye style sight flow indicators to earn the "USDA Dairy Accepted" designation.

Viewing is direct, using either of two windows which allow full see-through observation.


General Specifications:

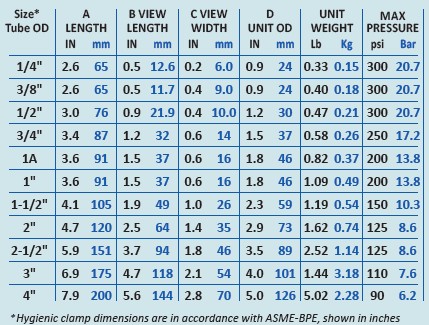

Standard & Special Sizes
Standard sizes (Tubing ODs), are 1", 1-1/2", 2", 2-1/2", 3" & 4".  Other tubing sizes are available as special orders.
Choice of Constructions
Adaptability to virtually any system is assured by a choice of four connections styles: clamp, butt weld, bevel seat, flange.
Quality Construction Materials
TRU-SAN 6000 indicators are manufactured with all stainless steel metal components.  Stainless steel bodies are finished to 150 grit (32Ra) or better for smooth, easy-to-clean surfaces.
Gaskets to Match Applications
TRU-SAN 6000 Models feature black Buna gaskets as standard. Other gasket material are available and should be carefully specified to match system temperatures and media.  Other choices: Buna White, EPDM, Viton, PTFE, Silicone & Polyethylene.
Choice of Viewing Windows
Viewing windows of UNI-SAN 6500 are standard on all TRU-SAN 6000 indicators.  Features include outstanding safety and service life plus high temperature tolerance. They are autoclavable.  Acrylic windows may be specified where lower temperatures or glass restrictions apply.

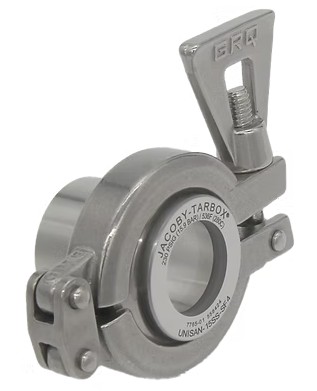

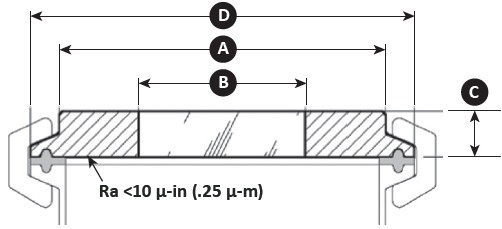

The UNI-SAN 6500 Sight Window

Jacoby Tarbox is industry's exclusive supplier of UNI-SAN 6500 viewing windows and TRU-SAN sight flow indicators.  UNI-SAN 6500 is the result of a technologically advanced process which actually fuses glass to metal.  The fusion produces a window of unmatched strength, allowing greater resistance to common causes of window failure and thereby providing today's safest window design.

The UNI-SAN 6500 component is a single unit of fused glass and metal.  Competitive designs normally require, (1) lamination of multiple glass discs which become overly thick and lower safety at higher temperatures, and (2) additional shims, packings, retainer rings or adjusting screws for proper installation.  With UNI-SAN 6500, windows are homogenous, thinner and installation is easier with no undue assembly or adjustments required.

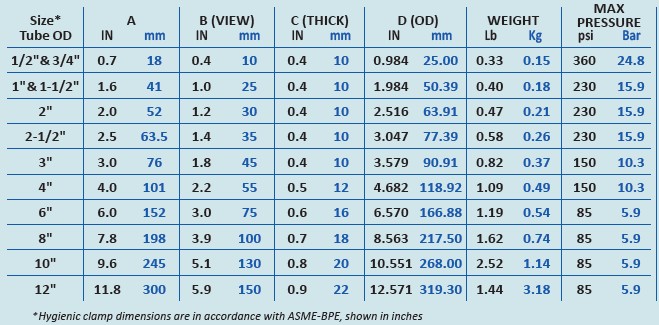

Sizes:
Tube OD - 1" through 4", Standard Schedule 5 Pipe (larger sizes are available)
Materials:
Ring: Stainless Steel, ASTM A240, A479, A182, Hastelloy C (B574, B575)
Gasket: Buna Black, Buna White, EPDM, Viton, PTFE, Silicone & Polyethylene
