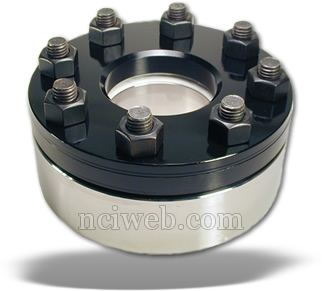

Jacoby Tarbox Model 5200PVQ Sight Window

Jacoby Tarbox Model 5200PVQThese units are fabricated with code metals and are designed for attachment to pressure vessels conforming to Section VIII of the ASME Boiler and Pressure Vessel Code.  They are available with flat or curved pads.   Also available with Uniglas, Dual Windows (FM Factory Mutual Approved) or Uniglas Dual Windows.

STYLE 5200-PVQ DIMENSIONS:
Size Cover Diameter View Diameter Pad Thickness
#2 3-7/8" 1-1/4" 1-3/4"
#3 5" 2"' 1-3/4"
#4 6-1/2" 2-9/16" 2"
#5 7-1/2" 3-3/16" 2"
#6 8-1/4" 4-3/16" 2"
#7 9-3/8" 5-1/4" 2-1/4"
#8 11'" 6-3/4" 2-1/4"
