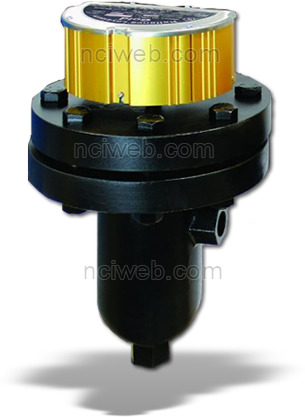

Levalarm® GOLD Float-Type Switch Model EA100G
For Pressures up to 1000 psi (69 Bar)
-
Zero effect from heat, vibration or loss of electrical power
-
Positive interlocking magnet design – proven over 30 years of use
-
Drop-in design requires no adjustments to commission
The new Levalarm GOLD switch represents a major step forward in reliability. It employs the same interlocking magnet operation used by Clark Clark-Reliance in its Jerguson Level Switches for over 28 years. Here’s how it works:
A stainless steel float is attached to the end of a rod with a stainless steel encapsulated magnet. The magnet travels vertically in the pressure tube. The primary magnet on the float rod inside the pressure tube drives the secondary magnet, which in turn drives the tertiary magnet. The tertiary magnet is mounted to the switch arm and activates the switch. The use of repelling magnetic fields create a positive interlocking switch that is vibration resistant.
A buoyed float will cause the reaction of the magnets to hold the switch open or closed, depending on which switch terminals are used. As liquid falls in the chamber, the float drops and directs the magnets to the opposite position which activates the switch in the opposite direction.
| Agency Approvals | UL 353 & FM 7710 |

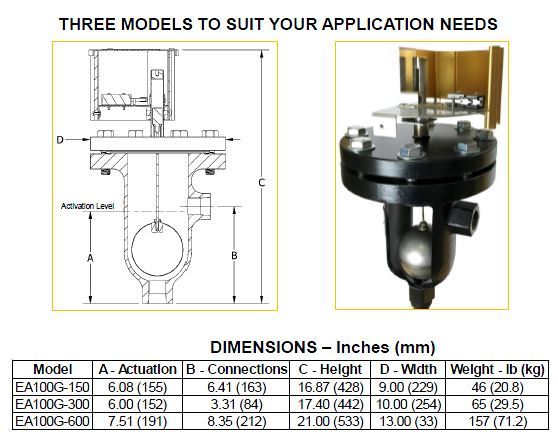

| Connection Sizes: | EA100-G-150: 1" FNPT EA100G-300/EA100G-300SW: 1" FNPT / 1" FSW EA100G-600/EA100G-600SW: 1" FNPT / 1" FSW |
| Pressure Rating: (MAWP = Maximum Allowable Working Pressure) |
EA100G-150: 200 PSI (13.8 Bar) MAWP EA100G-300/EA 100G-300SW: 500 PSI (34.5 Bar) MAWP EA100G-600/EA100G-600SW: 1000 PSI (69 Bar) MAWP |
| Float Switch Rating: | UL listed and CSA approved SPDT UL Code 35 5 A, 125, 250, or 480 Vac 1/2 A, 125 Vdc; 1/4 amp 250 Vdc Switch Max. Temperature: 400°F |
| Environment: | Indoor or outdoor |
