Clark Reliance DuraStar

DuraStar LED Illuminator for Flat Glass Level Gages

DuraStar is approved for use in Class 1, Div 1, Group B,C & D environments. The DuraStar Illuminator uses three columns of "directed" amber color LEDs to create a brilliant star-like image at the water level. The DuraStar easily attaches to new or existing Reliance level gages without the use of tools.

  • High Contrast
  • Superior Visibility Day or Night
  • Field Upgradable
  • Maintenance Free
  • Long Life - 100,000 hours
  • No Heat Generation
  • Versatile Continuous or On-Demand
  • Amber LEDs for High Intensity "Star Like" Image at Water Line.
  • Longest Field of View
  • Pays for Itself in Electricity Savings Alone
  • No Weather Proof Illuminator Required
DuraStarClick Here For More Details

LumaStar Explosion-Proof LED Illuminator Model EPL-100

LumaStarJerguson®, manufactured by the Clark-Reliance® Corporation, introduces a new Flat Glass LED Illuminator backlighting unit for transparent level gages that provides brilliant illumination of the process level and a maintenance-free bulb life of over 10 years. See Cost Savings Study Sheet (pdf file) The impact on plant safety and reliability is immediate. Economically, the EPL-100 LED Illuminator pays for itself in less than two years through maintenance and electricity savings.

The new Jerguson® EPL-100 also surpasses the length limitations of current "wedge or fiberoptic" type illuminators that cover a maximum of two sections or three sections respectively. The introduction of the EPL-100 enables coverage of up to four gage sections and allows the use of a single illuminator and power supply for the majority of level gage applications, saving both time and money on instillation.

Just some of the many features:

  • High Contrast - Superior Visibility Day or Night
  • Long Life - 100,000 hours
  • No Heat Generation
  • Field Upgradeable - Fits Any Glass Gage
  • Eliminates "Bulb Changes"
  • Longest Field-of-View
  • Covers up to 4 Size 9 Gage Sections
  • Explosion-Proof Power Supply - Intrinsically Safe Lighting Circuit
  • Pays for Itself in Electricity Savings Alone
DuraStarClick Here For More Details

Simpliport® Illuminator Economizes Drum Level Indication

Simpliport IlluminatorThe new Simpliport® LED Illuminator for bi-color boiler drum level indication. The highly visible light improves plant safety and reliability by eliminating the heat, burning hazards and maintenance associated with traditional illuminators.

The new Simpliport® LED Illuminator is a cost-effective choice because it utilizes innovative LED lights that use less than 10% of the power used by standard light bulbs. Designed and manufactured according to rigid quality standards, Simpliport® LED Illuminators retrofit any existing Simpliport® bi-color gage glass.

With a service life that lasts approximately ten years, the new Simpliport® LED Illuminators are maintenance-free and deliver long-term dependability and high quality performance for all your Reliance bi-color direct-reading boiler gages.

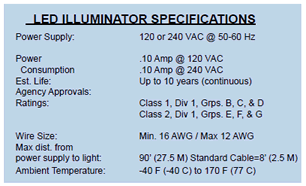

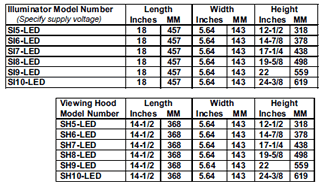

Simpliport Illuminator Simpliport Illuminator Table

SIMPLIPORT WATER LEVEL GAGE WIDE ANGLE VIEWING HOODS
Simpliport LED Light
  HEIGHT  WIDTH LENGTH
MODEL  INCHES MM INCHES MM INCHES MM
PWAV-5 12.28 312 3.64 92 5.54 141
PWAV 6 14.65 372 3.64 92 5.54 141
PWAV 7 17.03 433 3.64 92 5.54 141
PWAV 8 19.41 493 3.64 92 5.54 141
PWAV 9 21.78 553 3.64 92 5.54 141
PWAV-10 24.16 614 3.64 92 5.54 141

  • Provides easy reading of water level from any position within the 120° viewing range.
  • PWAV Series Hoods are designed for head-on viewing.
  • Retrofit any existing Simpliport Bicolor Water Gage.
  • Enhances the readability of the water level.
  • Designed to provide more flexibility of gage installation.
  • For indoor use only.
  • These hoods offer broad viewing to overcome plant obstacles.
  • All stainless steel construction.

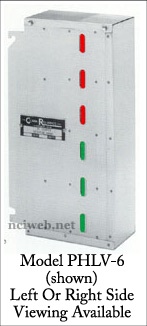

Model PHLV
  HEIGHT  WIDTH LENGTH
MODEL  INCHES MM INCHES MM INCHES MM
PH*V 5 12.50 318 3.68 93 7.50 190
PH*V-6 14.88 378 3.68 93 7.50 190
PH*V 7 17.025 438 3.68 93 7.50 190
PH*V 8 19.63 499 3.68 93 7.50 190
PH*V 9 22.00 559 3.68 93 7.50 190
PH*V 10 24.38 619 3.68 93 7.50 190
* = L  for LEFT side viewing or R for RIGHT side viewing.

  • Provides easy reading of water level from any position within the 120° viewing range.
  • PHLV or PHRV Series Hoods designed for side viewing at 90° to the left or right from the centerline of the Water Gage.
  • The side view hoods offer an option to project the water level image for convenient viewing to overcome plant obstacles.
  • For indoor use only.
