Flat Gage Glass

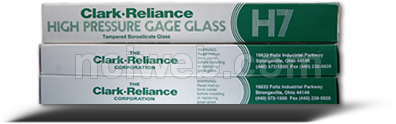

Clark Reliance Spares

Borosilicate Transparent Style
Borosilicate Reflex Style
High Pressure Style
Transparent Aluminosilicate
Reflex Aluminosilicate

Level Gage Spares
Non-Asbestos (Garlock® IFG-5500) See Picture
Grafoil (SS Reinforced) See Picture
Teflon See Picture
Mica Shields V-4 & V-2 See Picture
PCTFE (Formerly Kel-F)


Level Gage Repair Kits
Kits for Reflex Gages
Kits for Transparent Gages
Kits for High Pressure Gages

* Kits include parts for a complete single section changeout of glass, gaskets & mica shields (if applicable)..

Replacement Packing / Bushings
Packing Rings
Stem Bushing
Stem Packing
Nipple Packing
Repair Kits

Gaskets / Washers / Nuts & Bolts
Spiral Wound Gaskets
Spring Washers
Bolts / Nuts

Simpliport Parts
Replacement Module for P3000 Series: PW-24BR
Packing Nut for 1500psi Gage: PW-27R
Packing Nut for 3000psi Gage: PW-41
Replacement Module for P3000, P3100, P4000 & P4100 Series: PW-68
Middle Body for P3000 Series: PW-10
End Body for P3000 Series: PW-12
Replacement Module for P4000 & P4100 Manufactured in 2008 Series: PW-87B
Middle Body for P4000 & P4100 Series: PW-85
End Body for P4000 & P4100 Series: PW-86
Simpliport Modules
Preventive maintenance avoids costly down time. Replace modules after operating 18 months at pressures to 1200 PSI, 12 months at pressures above 1200 PSI. We suggest replacing remaining modules in gage, after 30% have been serviced. Operating conditions ( boiler water chemistry pressure fluctuations, etc.) may require occasional module replacement within these recommended PM periods.

Electrode Probes

Standard Conductivity Probes Clark Reliance Probes
Model T Probe (above) For Pressures To 450psi (Teflon Insulated)
Model V Probe (above) For Pressures To 1000psi (Teflon Insulated)
Model ZG Probe (above) For Pressures To 1800psi (Zirconium Oxide Insulated)
Model FG Probe (above) For Pressures To 3000psi (Zirconium Oxide Insulated)

Brazed Conductivity Probes

The FBRZ Probe has been designed for specification or retrofit into any Clark Reliance instrument designed for 3000 PSI.

The FSB Probe has been uniquely designed and specified only for Clark Reliance model instruments, without any sealing gasket required.

The ZBRZ Probe has been designed for specification or retrofit to any Clark Reliance instrument designed for pressures up to 1800 PSI.


--- See Probe Page

Relay P/N ECID-23


ECID-23RModel ECID23 or ECID-23 are available from stock for immediate shipment.  This bulletin should be used by experienced personnel as a guide to the installation of model ECID controls. Selection or installation of equipment should always be accompanied by competent technical assistance. We encourage you to contact us if further information is required.

  • Control Design: Solid state components enclosed in a clear Lexan plug-in style housing. Housing carries no NEMA rating.
  • Contact Design: DPDT (2 form C): two normally open (N.O.) and two normally closed (N.C.), non­powered contacts.
  • Contact Ratings: 5A @ 120, 240 VAC resistive, 1 /10 HIP @ 120,240 VAC. 5A @ 30 VAC.
  • Contact Life: Mechanical - 5 million operations. Electrical - 100,000 operations minimum at rated load.
  • Supply Voltage: 24 or 120 VAC models 10%, minus 15%,50/60 Hz.
  • Supply Current 120,24 VAC, Relay energized 4.4 VA.
  • Secondary Circuit 12 VAC RMS voltage on probes, 1.5 milli-amp current.
  • Sensitivity: Models operate from 0-100,000 OHM maximum specific resistance. Temperature: -40 to 150° F ambient. Terminals: All connections #6-32 screw type terminals with pressure clamps.
  • Listings: U.L. listed, Industrial Motor Control (508). CSA approved Industrial Control.
--- See ECID23 Page
