RCM Flowmeter Limit Switches

OPTIONS 1S2 AND 2S2: REED SNITCHES. RCM Flo-Gages can be ordered with either one (Option 1S2) or two (Option 2S2) reed switches suitable for sensing the actual flow rate. The switches make or break contacts by detecting the position of a magnet which is permanently attached to the pointer mechanism on the flow indicator. This technique constant correlation between the flow rate indicator and the flow switch. In addition it provides extremely reliable flow sensing which is highly immune to fouling by small particles in the flowing liquid.

Each switch is independently adjustable from 30% to 90% of full scale. Switches are factory set to specified flow rates (30% to 90% FS if not specified). Switches are single-pole double-throw for ease in configuring a safety interlock or control circuit.

Tamper resistant switches are located inside the meter and accessed by removing the hack cover. Switches are hermetically sealed in glass and then epoxy potted.

A 1/2" conduit entrance and a built-in terminal strip are provided for ease of connection.

APPLICATIONS
Use a single reed switch set for low flow to protect equipment against loss of cooling or lubrication flow. A high flow switch provides warning of pipeline leaks.

ORDERING INFORMATION
Recd switches are available with all options except, K, N, W, W2, W3, X, Y and Z

Specifications - RCM Flowmeter Limit Switches
Setability ±5% F.S.
Repeatability ±1% F.S.
Hysteresis 7 to 13% F.S.
Contact Rating 3 watts
Voltage 175 Vdc - max
245 Vac - max
Current 250 mA max switching
1.0 Amp max. carry

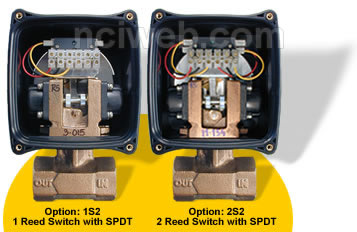

Option: 1S2 1 Reed Switch with SPDT
Option: 2S2 2 Reed Switches with SPDT
