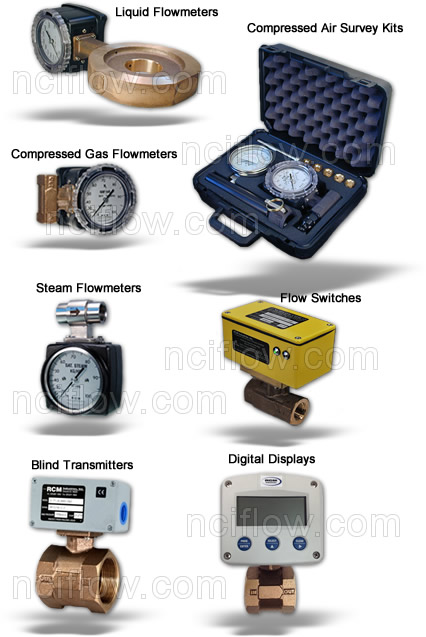

RCM Flowmeters RCM Liquid Flowmeters RCM Compressed Gas Flowmeters RCM Steam Flowmeters RCM Flow Switches RCM Compressed Air Survey Kit RCM Transmitters The RCM Flo-Gage™ is a direct reading flow meter with a large, easy to read dial calibrated in engineering units (GPM, SCFM, l/min, etc.). The Flo-Gage™ measures flow based on a pressure differential created across a built-in calibrated nozzle. The meter is self-contained and complete. It does not require external power connections, separate orifices, or blocking, purging or equalizing valves.

The Flo-Gage™ is suitable for measuring water, oil and most other low viscosity liquids which do not deposit out and which are compatible with the materials of construction.

The Flo-Gage™ is also suitable for measuring compressed air, oxygen, carbon dioxide and many other nontoxic compressed gases. (Specify option I.) Saturated steam can also be mea­sured up to 120 psig. (Option K).

The Flo-Gage™ can be fitted with a two-wire transmitter to provide a current output for remote indication, recording or totalization, or with reed switch contacts for signaling high or low flows.

The Flo-Gage™ flowmeter has been developed for industrial ap­plications where durability and reliability are important consider­ations in the monitoring of flow. The Flo-Gage has accuracy for most industrial processes and is particularly suited for applications where compactness, low cost, minimal maintenance and resistance to accidental damage are important factors.

Typical applications include: lube oil monitoring, blending pro­cesses, cooling water, reverse osmosis systems, and com­pressed air measurement.

Flow Meters ship within 2 weeks as a standard. We also offer a QuickShip™ option resulting in shipments within 3 days from date of order. ** Carries a nominal charge for rush handling.

Click to openFeatures (click to open or close)
  • Sturdy in-line metal construction to withstand piping stresses without breaking.
  • Black on white dial won't crack, glaze or become hard to read with age.
  • Expanded 3.5" (90mm) 270° analog dial for reading at a glance.
  • Suitable for use with both opaque and clear fluids.
  • Measures 6:1 range with 3% F.S. Accuracy.
  • Dial and case factory configured for quick installation - but easily field re-configured if needed.
  • Liquid flow ranges from 4 GPH (15 l/h) in 1/2" meter to 3000 GPM (1200 l/m) in 8" meter.
  • Gas flow ranges from 40 SCFH (1 Nm3/h) in 1/2" meter to 20,000 SCFM (600 Nm3/m) in 8" meter.
Click to openConstruction: (click to open or close)
Specifications Standard Optional
Housing Polycarbonate-UV Stabilized None
Body Bronze Monel - 316SS
Bellows Bronze Monel - 316SS - Inconel
Seals Buna-N Viton - EPR - Teflon
Crystal Polycarbonate None
Gear Movement Bronze 316SS
Accuracy ± 3% F.S. ± 3% F.S.
Repeatability ± 1% F.S. ± 1% F.S.
Pressure - Maximum 180psig 400psig
Pressure - Minimum 10psig 10psig
Temperature - Maximum 212° F 350° F
Temperature - Minimum -30° F -80° F
