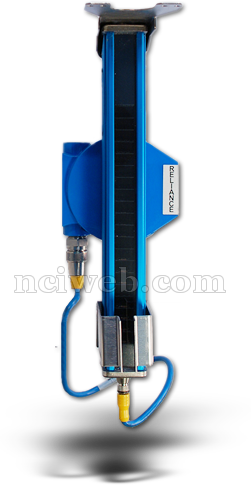

Clark Reliance DuraStar
DuraStar LED Illuminator for Flat Glass Level Gages
DuraStar is approved for use in Class 1, Div 1, Group B,C & D environments. The DuraStar Illuminator uses three columns of "directed" amber color LEDs to create a brilliant star-like image at the water level. The DuraStar easily attaches to new or existing Reliance level gages without the use of tools.
- High Contrast
- Superior Visibility Day or Night
- Field Upgradable
- Maintenance Free
- Long Life - 100,000 hours
- No Heat Generation
- Versatile Continuous or On-Demand
- Amber LEDs for High Intensity "Star Like" Image at Water Line.
- Longest Field of View
- Pays for Itself in Electricity Savings Alone
- No Weather Proof Illuminator Required
- Power Supply: 120 or 240 VAC @ 50-60 Hz
- Estimated Life: 100,000 Hours (continuous)
- Agency Approvals: FM Approved, CSA Pending | Class 1, Div 1, Grps B, C & D | Class 2, Div 1, Grps E, F & G
- Wire Size: Min 18 AWG / Max 12 AWG
- Max Distance from Power Supply to Light Strip: 8 ft. (2.5 m)
- Ambient Temperature: 40° F to 170° F
- Electrical Connection: 1/2" FNPT
