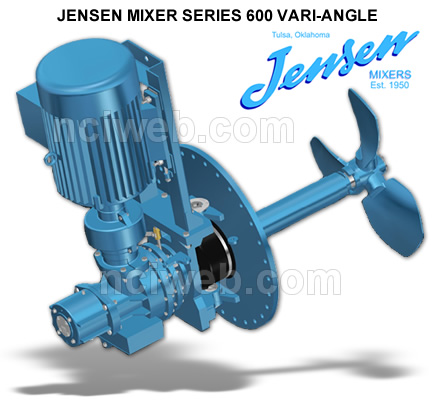

Jensen Series 600
Petroleum Mixers |
 Specifically designed
for Petroleum Services. Maximum horse power 75 and
gear driven. The Jensen Series 600 Mixer is the only side entry
mixer designed exclusively for use in petroleum service. Every
design feature is tailored to meet the rugged requirements of
refinery and pipeline applications. In every horsepower
range it offers superior life and load figures, unmatched ease
of maintenance and outstanding mixing efficiency. Jensen standard
materials offer optimum performance in any hydrocarbon application.
Jensen Mixers hang directly on your tank's manway (only). No need for additional equipment such as tie rods and/or a base (unlike our competition). Jensen Mixers' short shaft design (which is supported both at the front and rear of the shaft) provides for vibration-free service. This ensures a long life to the mixer's mechanical seal, gearbox, bearings etc. Only Jensen Mixer provides you with a (mixer) propeller custom pitched for your application. Jensen Mixer has well over 15,000 mixers in service today. Go with Jensen and get unequaled experience, time proven designs that out-perform and out-last all of our competitors. |
| |
| JENSEN
MODEL 600 GENERAL FEATURES |
| Shaft and wear sleeve - Stainless Steel
(Option for 316SS) |
| Lock ring, lock bushing, & seal
housing - 316 Stainless Steel |
| Drive Yoke - Aluminum Bronze |
| Propeller & Body - Cast Carbon
Steel (Option for 316SS) |
| Gearbox - 356-T6 heat treated Aluminum
Alloy |
| O Rings - Viton "A", Buna "N" & Teflon
encapsulated Viton |
| |
|
The Jensen Series 600
Mixer is supported entirely by the tank manway or nozzle. No
tie rods, bases or other external supports are used. Lightweight
and low overhang design are the keys to this money saving feature.
Support for the propeller
shaft is provided by the main thrust bearing at the outboard
end of the mixer and by the shaft end bearing close to the
tank shutoff device. With this long bearing span, any possibility
of shaft whip is virtually eliminated. All moving parts
are completely enclosed by protective covers. |
| |
| Related Links |
| Series
600 Propeller Information |
| Series
600 Gearbox & Gearbox Parts Drawings |
| Series
600 Seal |
| Series
600 Coupling |
| Drip
Cover Option |
| Series
600 Fixed Angle for Blending Application |
| Series 600 Vari-Angle for Cleaning
Applications |
| High Temperature
and Asphalt Mixer |
| Flash
Demo Of Vari-Angle vs. Fixed Angle When Cleaning or Suspending
Solids |
| Typical Cross Section of Series 600
Fixed Angle Mixers |
| Typical
Cross Section of Series 600 Vari-Angle Mixers |
| Vari-Angle
Dimensions |
| Fixed-Angle
Dimensions |
| Series
600 Installation, Operation & Maintenance 1.50MB PDF |
| Series
600 Product Brochure 755KB PDF |
| |
| SELECTION
OF THE JENSEN MODEL 600 |
|
Defining your requirements and selecting
the right mixer to do the job is most important. Jensen
offers a mixer specifically tailored to every need. |
| |
| Mixer applications
can be separated into two categories: |
| 1). BLENDING
- Mixing two or more fluids. Select the Jensen Model
600 Fixed-Angle Mixer. |
| 2). CLEANING
- Removing sediment accumulations from tank bottoms. Select the Jensen
Model 600-VA Vari-Angle Mixer. |
| |
| In cases where both services
are required, the Vari-Angle should be selected. |
|
Jensen process recommendations are
fully guaranteed. Jensen mixers are guaranteed against
defects for 12 months. |
| |
| Model |
Model 605 |
Model 620 |
Model 650 |
Model 680 |
| Horsepower (Max.) |
5 |
20 |
40 |
75 |
| Shaft R.P.M. |
341 |
425 |
425 |
425 |
| Gear Rating * |
11.6 HP |
37.5 HP |
116 HP |
116 HP |
| Bearing Life ** |
80,000 HRS. |
48,000 HRS. |
64,000 HRS. |
48,000 HRS. |
| Critical Speed *** |
2,460 RPM |
2,470 RPM |
2,800 RPM |
3,200 RPM |
|
|
|
| |
| * Equivalent A.G.M.A Class II Horsepower |
| ** B-10 Life (90% of the bearings will meet or exceed). Life shown is lowest calculated life of any bearing in the mixer. |
| *** Propeller shaft first critical speed. |
| |
| |
