Jensen Mixer Series 600 Propeller

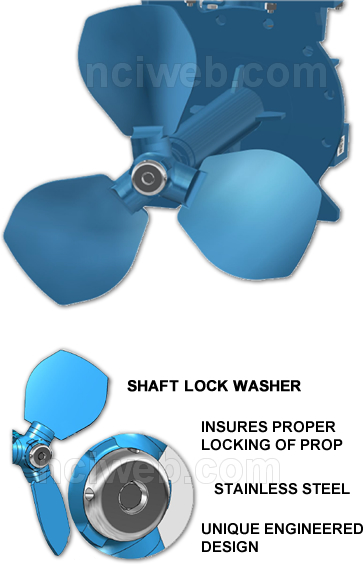

Jensen Series 600 PropellerTank mixer performance is dependent upon propeller design and efficiency.  The exclusive Jensen Pitch-Adjusted propeller is a highly efficient, three blade, marine type propeller precision set and permanently fixed at our factory to assure superior mixing performance in each individual application.  Factory selection of optimum pitch/diameter ratio results in higher thrust, increased flow and maximum utilization of available power.

The Jensen Pitch-Adjusted propeller is the most tested and most inspected propeller available on any mixer.  Jensen has conducted exhaustive efficiency tests on Pitch Adjusted and competitive propellers at various speeds and horsepowers.  Results showed Jensen Pitch Adjusted propellers to be more efficient in every horsepower range when operated at manufacturer's recommended RPM.

Jensen Pitch Adjusted propellers can easily be installed through most standard manways without removing the prop from the mixer shaft or entering the tank.

Jensen Mixer Series 600 IOM Jensen Mixer Series 600 IOM (4648 KB)

PROPELLER SIZE
PROPELLER SIZE
H 20" 23" 26" 29" 32" 35"
Manway inside diameter required to insert propeller
4 14 16 17 19 20 22
5 15 16 18 19 21 22
6 16 17 19 20 22 24
7 16 19 19 22 24 25
8 16 19 20 23 25 26
