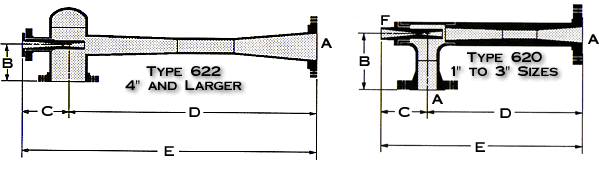

Type 620, 622, and 626 Gas Jet Compressors
- Dimensions
|
|
|
|
Size
|
Dimensions
in Inches
|
Weight
|
|
A
|
B
|
C
|
D
|
E
|
F
|
LBS.
|
|
1
|
3-11/16
|
3
|
8-7/8
|
11-7/8
|
3/4
|
10
|
|
1-1/2
|
4-11/16
|
4-3/16
|
13-1/4
|
17-7/16
|
1
|
25
|
|
2
|
5
|
4-9/16
|
17-11/16
|
22-1/4
|
1-1/4
|
40
|
|
2-1/2
|
5-3/4
|
5-1/8
|
22-1/16
|
27-3/16
|
1-1/2
|
65
|
|
3
|
6-1/8
|
5-11/16
|
26-7/16
|
32-1/8
|
2
|
105
|
|
4
|
7-1/8
|
8
|
36
|
44
|
2
|
65
|
|
5
|
8-3/8
|
9
|
45
|
54
|
2
|
90
|
|
6
|
9-1/8
|
10
|
54
|
64
|
3
|
115
|
|
8
|
11
|
11
|
70
|
81
|
3
|
170
|
|
10
|
12-1/2
|
12
|
88
|
100
|
4
|
225
|
|
12
|
14-1/2
|
13
|
106
|
119
|
4
|
290
|
|
14
|
16
|
13
|
124
|
137
|
4
|
350
|
|
16
|
17
|
15
|
141
|
156
|
6
|
420
|
|
18
|
19
|
16
|
159
|
175
|
6
|
500
|
|
20
|
20-11/16
|
17
|
176
|
193
|
8
|
550
|
|
24
|
23
|
19
|
212
|
231
|
8
|
950
|
|
30
|
27-3/8
|
22
|
264
|
286
|
10
|
1750
|
|
36
|
32-11/16
|
26
|
317
|
343
|
12
|
3000
|
|
42
|
36-3/4
|
30
|
370
|
400
|
14
|
4600
|
|
|
|
|
|

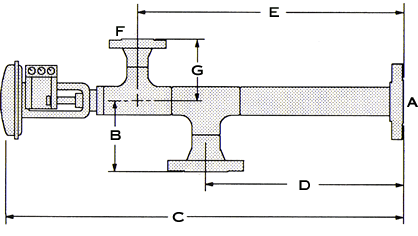

- All flanges are ANSI 1316.5 rated R. F. as required. Dimensions
for 150# rated connections are shown.
- Lengths D and E may vary with the application.
- The motive connection size, F, may vary from the size shown.
|
 |
|
Size
|
Dimensions
in Inches
|
Weight
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Lbs.
|
|
1
|
3-11/16
|
38-1/2
|
8-7/8
|
12
|
1/2
|
3-3/8
|
60
|
|
1-1/2
|
4-11/16
|
45-1/2
|
13-1/4
|
18
|
3/4
|
4-5/16
|
80
|
|
2
|
5
|
50-1/2
|
17-11/16
|
23
|
1
|
4-3/16
|
100
|
|
2-1/2
|
5-3/4
|
60-3/4
|
22-1/16
|
28-1/4
|
1-1/2
|
5-1/16
|
150
|
|
3
|
6-1/8
|
65-3/4
|
26-7/16
|
33-1/4
|
1-1/2
|
5-5/16
|
150
|
|
4
|
7-1/8
|
77-1/4
|
36
|
43-3/4
|
2
|
6
|
190
|
|
5
|
8-3/8
|
96
|
45
|
54
|
2-1/2
|
7
|
340
|
|
6
|
9-1/8
|
106-3/4
|
54
|
64-1/4
|
3
|
7-5/8
|
450
|
|
8
|
11
|
128
|
70
|
84-3/4
|
4
|
9-1/8
|
575
|
|
10
|
12-1/2
|
158-1/2
|
88
|
105-1/2
|
5
|
11
|
975
|
|
12
|
14-1/2
|
180
|
106
|
126
|
6
|
12-1/8
|
1310
|
|
14
|
16
|
201
|
124
|
145-3/4
|
8
|
13-3/4
|
1650
|
|
16
|
17
|
222
|
141
|
165-1/2
|
8
|
14-3/4
|
2000
|
|
|
|
|
|
- All flanges are ANSI 816.5 rated R.F. as required. Dimensions
for 150# rated connections are shown.
- Lengths C, D, and E may vary with the application.
- The motive connection size, F, may vary from the size shown.
|
|
|
