ELECTRICAL DATA FOR PEECO FLOW SWITCHES

Meeting electrical requirements is basically a matter of correct selection of the micro-switch.
Micro Switch Choices:
  • 15A. 125-250-480 VAC SPDT | 1/2A. 125 VDC | 1- N.O., 1- N.C., 1-Comm. (Standard)
  • 10A 125 VDC SPDT (optional)
  • 5A 480 VAC 400º F SPDT (optional)
  • 15A 600 VAC SPDT (optional)
  • 10A 125 VAC DPDT (optional)
  • 5A 125 VAC SPDT Hermetically sealed (optional)
  • 1A 125 VAC SPDT Hermetically sealed (optional - see below)
Multiple Actuation:
Multiple actuation with standard micro switches can be used for high low flow, flow reverse flow, and simultaneous flow actuation.

  • (2) Micro-Switches (STD 15A. 480 VAC) (optional)
  • (3) Micro-Switches (STD 15A. 480 VAC) (optional)
  • (4) Micro-Switches (STD 15A. 480 VAC) (optional)
  • (2) SPDT micro-switches stacked because of sensitivity requirements, i.e., lower actuating force.  (optional)

SPDT Standard Switch Configuration

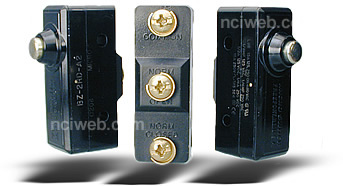

SPDT Micro-Switch

DPDT Hermetically Sealed Switch Configuration
DPDT Hermetically Sealed


Multiple Actuation withStandard Micro-Switches Multiple Actuation withStandard Micro-Switches
Multiple Actuation Dashpot Configuration

Air Operated - Non Electric Pneumatic Operation Stacked 15A SPDT Micro-Switches (DPDT Service)
Air Operated DPDT Stacked 15A
