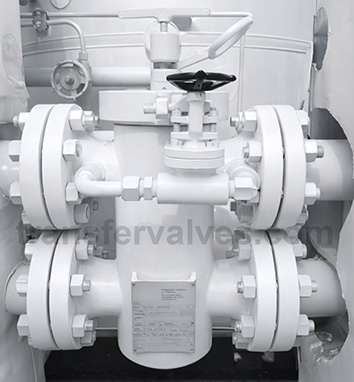

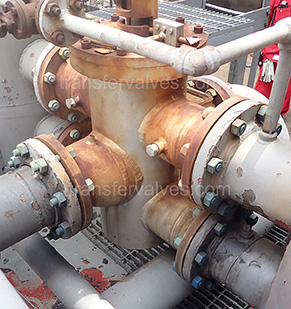

HYCOA Series JR-33 Transfer Valves

Revolutionary Patented Shoe Seal - Resilient Positive Sealing for High Performance.

For decades, industry has been living with sub optimal transfer valves as a means to control fluid flow through redundant filters and coolers. These cast plug valves had two primary draw­backs, frequent leakage to the offline vessel and extremely difficult operation. Despite the presence of several competitive vendors, the traditional designs went unchanged for years.

This set the stage for HYCOA's CEO, Jay Williams to revolutionize the transfer valve back in 1980 with our patented resilient seal shoe. For the first time, "Zero Leak" and "Transfer Valve" became terms that could be used together.

This new and innovative approach to an old problem offered industry additional advantages. Features such as zero frictional drag during changeover and a positive mechanical lock down device have turned the JR-33 into a favorite of design and maintenance engineers as well as plant operators.

Of course, success breeds imitation and several other new transfer valves have sprung up in recent years. However, our patented design is still the only one with retractable, fully covered elastomer shoes. This feature is important to reduce operating torque. The retraction feature also avoids dragging an o-ring seal around the valve body bore and causing potential seal wear or damage.

Past, present and future, HYCOA's commitment and focus is with the customer who requires top performance from their transfer valves. We understand the requirements of duplex filter systems, heat exchangers and other critical API auxiliary lube oil systems. We also understand the requirements of our customers who simply want top performance in their transfer valve.


Series JR-33 Value Added Features:
  1. Patented Shoe Seal provides Zero Leakage and Zero Frictional Drag on Crossover.
  2. Positive Patented Mechanical Lockdown - No Springs.
  3. Exceptionally Low Pressure Drop.
  4. Fabricated Steel Construction-Special Configurations and Dimensions are Available, Consult Factory.
  5. "Will Fit" System-Drop In Replacements for Competitive Valves.
  6. Stainless Steel Internal Trim and Moving Parts.
  7. Easy Low Torque Operation-Handle Extensions are not Required.
  8. No Lubricant Stick Required to Operate.
  9. Pressure Ratings to 1600 P.S.I.
  10. Flanged or Butt Weld Connection.
  11. Compact Open Center Design.
  12. Valve Sizes 1-1/2" Through 8".
  13. Spectacle Blinds are not Required for Tight Shut-Off.
  14. Designed and Tested per API Standards 598 & 614.
  15. Complete In-house Testing Facility for Specials and Customer Requirements.
JR-33 Transfer Valve Ordering Information:

Notes:

  1. The standard flange is 150 pound ANSI for the standard pressure valve and 6(10 pound ANSI for the high pressure valve. The plus I flange is 300 pound and 900 pound ANSI respectively. Other ANSI and SAE flanges are available.
  2. The high pressure option is not available in 6" and 8".
  3. Standard finish for carbon steel valves is gray alkyd primer.
  4. An "S" in the option column will be followed by a 3 digit special number.
  5. An equalizing line is required for transfer valve operation. If 'the delete option is chosen, the customer must provide an equalizing line in their piping. The equalizing line is installed across the high pressure or "dirty side" vessel pours.
  6. Standard twinpak inlet/outlet orientation is same side. The configuration may easily be changed to opposite side with a simple modification. This modification can be done in the field or can be factors installed.

Specifications:
  (1). Maximum temperature rating:
  Polyurethane/Buna-n Seals 200° F
  Buna-N 250° F
  Viton* 350° F
  Neoprene 250° F

  (2). Minimum standard temperature rating: -20° F

  (3). Maximum pressure rating, carbon steel valves (@ 200° F)
  150 lb. ANSI flanged valves 260 psi
  300 lb. ANSI and buttweld valves 675 psi
  600 lb. ANSI and high varies by size, consult with us.

  (4). Maximum pressure rating, stainless steel valves-consult us.

  (5). Maximum standard differential pressure rating (inlet to outlet)
  Valve sizes 1-1/2" through 4" 50 psi
  6" valve 23 psi **
  8" valve consult us
** A high differential pressure option is available.
*Registered DuPont Trademark
