LevelStar

Magnicator II BI-Color LED Level Indicator

The LevelStar utilizes patent pending technology to deliver unmatched Magnetic Level Gage visibility and reliability throughout your plant. Now you can see your liquid level with or without lighting - day and/or night from distances that are unachievable with competiting products. Upgrade your existing Magnicators with the LevelStar for the latest liquid level viewing technology.

  • High Contrast
  • Superior Visibility Day or Night
  • Increased Reliability
  • Long Life (over 100,000 hrs.)
  • No Mechanical / Rotating Parts
  • Field Upgradable
  • Customized Color Option
  • Longest Field-of-View Available
  • Input Voltage: 120VAC / 240VAC
  • Indicator Voltage: -18VDC
  • Power Consumption: 700 mA max. @ 20 feet indication
  • Ambient Temp.: 175 F
  • Process Temp.: 375° F w/o insulation strip | 450° F with insulation strip | 451° F ++ with air purge
  • Wire Spec: 14 AWG nominal 16 AWG max.
  • Max. Distance From to Power Supply to Light Strip: 4 feet
  • Electrical Conn.: 3/4" FNPT
  • Estimated Life: 100,000 Hours (continuous)
  • Agency Approvals: FM Approved, CSA Pending Class I, Div I, Grps. B, C, & D Class II, Div I, Grps. E, F, & G

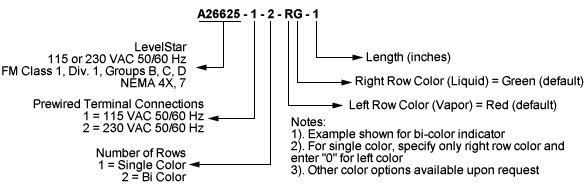

How to Specify a LevelStar Indicator for a Magnicator II
