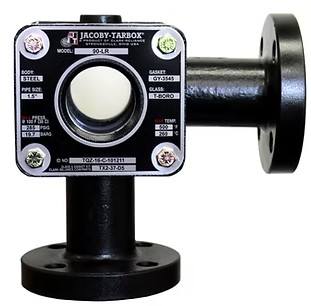

90º Degree Angle Sightflow Indicators

Recommended when space or system characteristics make straight line indicators unsuitable.  Angle models can be supplied with, or without, drip tubes.  Drip tubes are positioned into the center window  area for easy observation.  Models without drip tubes will operate effectively with solution flows in any direction.  Units with drip tubes are best suited to low, or intermittent flow in vertical, downward direction.

The bodies are made from single piece, cast construction.  These sight flow indicators are available in either Plain or Drip Tube style of indication. Units without drip tube indication may be used in any orientation of flow. Units with drip tube indication should be mounted in a vertically downward orientation. Units can come with inside and outside bosses for instrumentation taps.

Features:

• Flanged connections per ASME B16.5
• Threaded connections (male and female) per ASME B16.1
• 90 degree unit matches “take-out” or face-to-face of Class 150 and Class 300 long radius elbows
• Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications.
• Tempered borosilicate glass
• Units and machined and assembled in an ISO-9001 fully automated facility.
• Wetted components meet NACE MR-01-75 / ISO15156-1 requirements.
• Stainless steel engraved identification faceplate.
