SPRAY NOZZLE PARTS
Our spray nozzles were designed for long lasting durability and to withstand abuse common in industrial environments. Engineers used simplicity as a key factor in the design of our nozzles. Our nozzles are considered one of the few nozzles in the sanitation equipment industry to be truly “user friendly”, especially when repairs or replacements have to be made.
ALL SUPERKLEAN STANDARD NOZZLE PARTS ARE INTERCHANGEABLE WITH THOSE OF OUR COMPETITORS
Nozzle Parts
Nozzle Part Numbers
Part #: | Description: |
1-B | Nozzle body, brass, one piece, epoxy resin coated. |
1-A | Nozzle body, anodized aluminum, one piece, epoxy resin coated. |
1-S | Nozzle body, 300 series stainless steel, one piece, epoxy resin coated. |
2 | Lever, 300 series stainless steel. |
3 | Lever bolt, bushing & nut, 300 series stainless steel. |
5-B | Cage or "thrust collar", brass. |
5-S | Cage or "thrust collar", 300 series stainless steel. |
7-B | Cartridge or "barrel assembly", brass, contains all working parts. |
7-S | Cartridge or "barrel assembly", 300 series stainless steel, contains all working parts. |

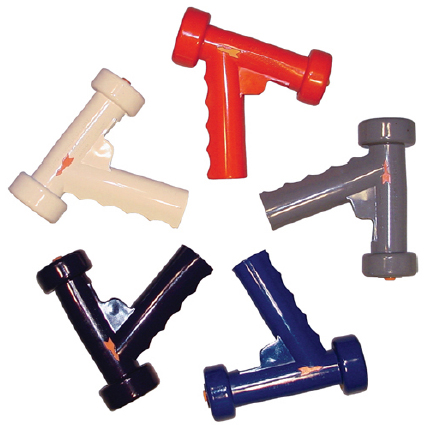

Nozzle Rubber Covers
Nozzle Rubber Cover Part Numbers
Part #: | Description: |
4-DB | Nozzle cover, dark blue. |
4-LB | Nozzle cover, light blue. |
4-G | Nozzle cover, gray. |
4-R | Nozzle cover, red. |
4-W | Nozzle cover, white. |
