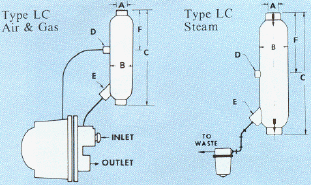

Dimensional Information For Type LC Separators

Type   LC-25 LC-50 LC-75 LC-100 LC-125 LC-150 LC-200
Pipe Size A ¼ ½ ¾ 1 1¼ 1½ 2
Diameter B 2¼ 2¼ 2¼ 3¼ 3¼ 5 5
Length C 8¾ 8¾ 8¾ 14-5/8 14-5/8 16-5/8 16-5/8
Vent Size D ¼ ¼ ¼ ¼ ¼ ¼ ¼
Drain Size E ½ ½ ½ ¾ ¾ ¾ ¾
Vent Loc. F 3½ 3½ 3½ 6-1/8 6-1/8 8-1/8 8-1/8
Weight   4# 4# 4# 8# 8# 8# 8#
