STAINLESS STEEL STEAM & COLD WATER MIXING
We are proud to introduce the most innovative steam and cold water mixing unit specifically designed to provide safe and efficient means of clean up by producing hot water instantly with little or no maintenance. The DURAMIX 8000 unit operates under a wide range of steam and water pressures without changing internal components. In fact, it is one of the only steam and cold water mixing units in the industry with the ability to operate with as little as 30 PSI of water pressure. Its dual output design provides the user with the ability to supply two individual terminals with their own hot water supply. Its unique internal design does not allow live steam to penetrate, thus making this unit the safest in the market.
DURAMIX 8000GM-S SERIES
Principal Parts, Material & Ratings |
|
Inlet / Outlet Diameter: | 3/4” NPT |
Mixer Body: | 300 Series Stainless Steel |
Globe Style Valves: | 300 Series Stainless Steel |
Check Valves: | 300 Series Stainless Steel |
Temperature Gauge: | (optional) Stainless Steel |
Working Steam Pressure: | 30-150 PSI (Saturated Only) |
Working Water Pressure: | 30-150 PSI |
Maximum Pressure: | 150 PSI |
Maximum Temperature: | 200° F (93° C) |
Weight: | 20 Lbs. |
Stainless Steel Steam & Cold Water Mixing Units | |
Model | Description: |
8000GM-B | Steam & cold water mixing station, bronze, includes 2 globe valves, 2 check valves, stainless steel hose rack, aluminum mounting plate, bolts & washers. |
8000GM-B-T | Steam & cold water mixing station, bronze, includes 2 globe valves, 2 check valves, stainless steel hose rack with stainless end adapters, aluminum mounting plate, adjustable angle temperature gauge, bolts & washers. |
8000GM-S | 300 series stainless steel, steam & cold water wall mounted mixer-hose station with globe style valves. |

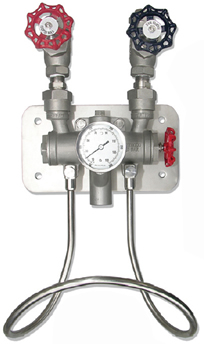

8000GM-S-T | 300 series stainless steel, steam & cold water wall mounted mixer-hose station with globe style valves and adjustable angle temperature gauge. |
Temperature Rise vs. GPM | |||
INPUT | OUTPUT | ||
Steam* | Water | Temperature Rise | GPM |
100 PSIG | 60 PSIG | 55° F | 14.0 |
100 PSIG | 60 PSIG | 100° F | 9.0 |
100 PSIG | 60 PSIG | 135° F | 7.8 |
* Saturated Steam Only |
