BALL VALVES HOT & COLD WATER MIXING UNIT

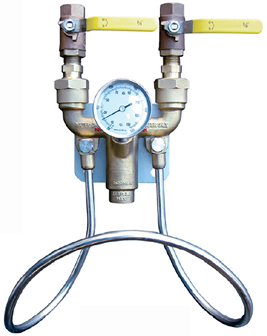

Hot & Cold Mixing UnitSuperKlean now offers a hot & cold water mixing units with ball valves for easier shutoff while maintaining its original characteristics. The unit uses “Y” style body mechanics with lift check valves and ball joint unions for superior flexibility during installation. SuperKlean’s inlet center lines have the same dimensions as most of our competitors’ units. Our units come with a mounting plate for easy behind the unit cleanup, hose rack for easy user access to the hose, and an optional temperature gauge for accurate temperature readings at outlet. UNIT NOT FOR USE WITH STEAM









Series 3600M

Easily build tabbed content areas anywhere on your page using jQuery tab panels like this:

Principal Parts, Material & Ratings

Inlet / Outlet Diameter: 3/4” NPT
Mixer Body: Brass
Ball Valves: Bronze / Stainless Steel
Check Valves: Brass
Temperature Gauge: (optional) Stainless Steel
Maximum Pressure: 150 PSI
Maximum Temperature: 200° F (93° C)
Weight: 18 Lbs.
Ball Valves Brass Hot & Cold Water Mixing Units
Part #: Description:
3600BM-B Brass, hot & cold water wall mounted mixer-hose station. Includes ball valves instead of globe valves.
3600BM-B-T Brass, hot & cold water wall mounted mixer-hose station with adjustable angle temperature gauge. Includes ball valves instead of globe valves.
