Universal Silencer UCI
Group |
|
Chamber Type Inlet Silencer |
|
|
|
|
The UCI Series Inlet Silencer is a heavy-duty, all
welded unit constructed of carbon steel sheet and plate. It
provides pulse control and adequate silencing for most subcritical
PLV applications. Sizes 8'' and larger are equipped with flanged
connections drilled to 125/150 lb. ANSI specifications. Exterior
surfaces receive a shop coat of rust inhibitive primer and may

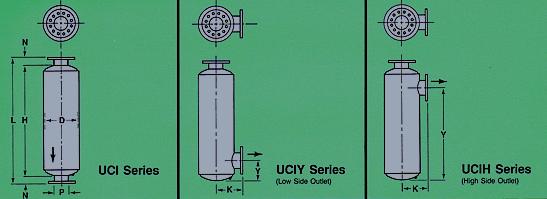

be finish painted in the field if desired. The UCI Series is the
basic model and is the conventional end inlet/end outlet version.
The low side inlet model is designated UCIY Series and the high
side inlet type is designated UCIH Series. The three types are
fundamentally alike and performance is identical. Mounting
brackets and other options are available. |
|
|
|
D |
L |
N |
H |
K |
Y -UCIY |
Y -UCIH |
|
P (SIZE) |
|
MIN. |
MAX. |
MIN. |
MAX. |
WGT. |
1 |
SIZES
1" - 6" PLEASE USE
URB SERIES |
1-1/2 |
2 |
2-1/2 |
3 |
3-1/2 |
4 |
5 |
6 |
8 |
22 |
61 |
3-1/2 |
54 |
14-1/2 |
9 |
21 |
28-1/2 |
45-1/2 |
250 |
10 |
26 |
74 |
3-1/2 |
67 |
16-1/2 |
11 |
27 |
34-1/2 |
57 |
360 |
12 |
30 |
87 |
3-1/2 |
80 |
18-1/2 |
12-1/2 |
34 |
41 |
69 |
550 |
14 |
30 |
99 |
3-1/2 |
92 |
18-1/2 |
13-1/2 |
40 |
47-1/2 |
80-1/2 |
650 |
16 |
36 |
113 |
3-1/2 |
106 |
21-1/2 |
15-1/2 |
48 |
53-1/2 |
91-1/2 |
950 |
18 |
42 |
126 |
3-1/2 |
119 |
24-1/2 |
17-1/2 |
55-1/2 |
59-1/2 |
103-1/2 |
1200 |
20 |
42 |
140 |
4-1/2 |
131 |
25-1/2 |
19 |
60-1/2 |
67 |
114 |
1350 |
22 |
48 |
153 |
4-1/2 |
144 |
28-1/2 |
20-1/2 |
66-1/2 |
75 |
126 |
1950 |
24 |
54 |
167 |
4-1/2 |
158 |
31-1/2 |
22-1/2 |
72 |
83 |
138 |
2500 |
26 |
54 |
179 |
4-1/2 |
170 |
31-1/2 |
23-1/2 |
85 |
84 |
149 |
2750 |
28 |
60 |
193 |
4-1/2 |
184 |
34-1/2 |
25-1/2 |
87 |
91 |
161 |
3400 |
30 |
66 |
206 |
4-1/2 |
197 |
37-1/2 |
27-1/2 |
95 |
100 |
173 |
4650 |
|
|
Dimensions in Inches, Weight in Lbs. |
Dimensions and weights are nominal and may vary slightly
with productio models. Request certified drawings of specific models
for exact dimensions. |
|
