Universal Silencer UCD
Group |
|
Chamber Type Discharge Silencer |
|
|
|
The UCD Series Discharge
Silencer is a heavy-duty, all welded unit constructed of
carbon steel sheet and plate. Individually, it provides
pulse control and adequate silencing for sub-critical PLV
applications where the higher performance of the URD Series
on page 8 is not warranted. However, the UCD Series is
primarily intended as a companion silencer for use in series
with the WBM Blower Mounted Silencer described on page
11. Sizes 8'' and larger are equipped with flanged connections
drilled to 125/150 lb. ANSI specifications. Exterior surfaces
receive a shop coat of rust inhibitive primer and may be
finish painted in the field if desired. The UCD Series
is the basic end inlet/end outlet configuration. A low
side inlet version is designated UCDY Series. The two types
are fundamentally alike and the performance is identical.
MountÂing brackets and other options are available. |
|
|

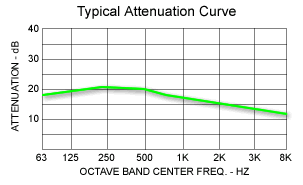

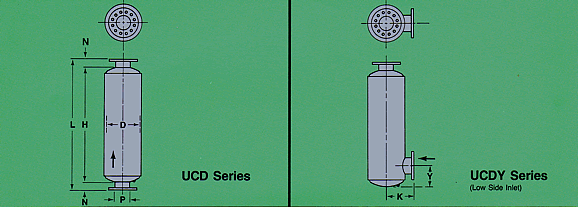

P (SIZE) |
D |
L |
N |
H |
K |
Y MIN. |
MAX. |
WGT. |
1 |
SIZES
1 " - 6" USE URB SERIES
|
1-1/2 |
2 |
2-1/2 |
3 |
3-1/2 |
4 |
5 |
6 |
8 |
22 |
61 |
3-1/2 |
54 |
14-1/2 |
9 |
21 |
250 |
10 |
26 |
74 |
3-1/2 |
67 |
16-1/2 |
11 |
27 |
360 |
12 |
30 |
87 |
3-1/2 |
80 |
18-1/2 |
12-1/2 |
34 |
550 |
14 |
30 |
99 |
3-1/2 |
92 |
18-1/2 |
13-1/2 |
40 |
650 |
16 |
36 |
113 |
3-1/2 |
106 |
21-1/2 |
15-1/2 |
48 |
900 |
18 |
42 |
126 |
3-1/2 |
119 |
24-1/2 |
17-1/2 |
55-1/2 |
1200 |
20 |
42 |
140 |
4-1/2 |
131 |
25-1/2 |
19 |
60-1/2 |
1350 |
22 |
48 |
153 |
4-1/2 |
144 |
28-1/2 |
20-1/2 |
66-1/2 |
1950 |
24 |
54 |
167 |
4-1/2 |
158 |
31-1/2 |
22-1/2 |
72 |
2500 |
26 |
54 |
179 |
4-1/2 |
170 |
31-1/2 |
23-1/2 |
85 |
2750 |
28 |
60 |
193 |
4-1/2 |
184 |
34-1/2 |
25-1/2 |
87 |
3400 |
30 |
66 |
206 |
4-1/2 |
197 |
37-1/2 |
27-1/2 |
95 |
4650 |
|
|
Dimensions in Inches, Weight in Lbs. |
Dimensions and weights are nominal and may vary slightly
with productio models. Request certified drawings of specific models
for exact dimensions. |
|
Previous Page |
