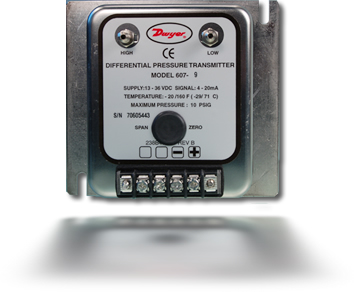

Dwyer Series 607 Differential Pressure Transmitter

±0.25% or ±0.5% F.S. Accuracy, Ranges from 0-0.1" W.C.

differential pressure switchSeries 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" W.C.. Ultra thin glass clad silicon diaphragm design resists sock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA-2 rated to protect against moisture and dirt. Use with air and other compatible gases. Dimensional Drawing

APPLICATIONS: Chemical petroleum, food and drug processing industries. Used indoor, outdoor or in explosion-proof area.



PHYSICAL DATA

  • Accuracy: ±0.5% or ±0.25% F.S.
  • Service: Air and non-conductive, non-corrosive gases
  • Output: 4 to 20 mA DC, 2-wire
  • Supply Voltage: 12-36 VDC
  • Loop Resistance: 0-1045 ohms Vmin.= 12V + [(.22A)(RL)
  • Current Consumption: 3.6 mA (min.)
  • Span and Zero: Externally accessible potentiometers, Non-interactive, ±10% F.S. adjustment
  • Response Time: 250 msec maximum
  • Maximum Pressure: 10 psig (0.7kg/cm²)
  • Compensated Temperature Range: 35 to 135°F (2 to 57°C)
  • Operating Temperature Range: -20 to 160°F (-29 to 71°C), 10-95% Rh
  • Storage Temperature Range: -40 to 180°F (-40 to 82°C)
  • Thermal Effects: ±0.015% F.S./°F (zero and span) Stability: ±0.5% F.S.O./year
  • Housing: 300 Series stainless steel (NEMA-2).
  • Process Connections: Barbed, stainless steel for ¼" I.D. tubing
  • Electrical Connection: Screw Terminals
  • Weight: 14 oz. (397 g)

MODELS NUMBERS (stock shown in bold)
Model Number
Range, in w.c.
Model Number
Range, in w.c.
607-0
607-01
607-1
607-11
607-2
607-21
607-3
607-4
607-7
0-.10
0-.10
0-.25
0-.25
0-.50
0-.50
0-1.0
0.2.0
0-5.0
607-71
607-8
607-0B
607-1B
607-2B
607-9
607-3B
607-4B
607-7B
0-5.0
0-10
.10-0-.10
.25-0-.25
.50-0-.50
0-25
1.0-0-1.0
2.0-0-2.0
5.0-0-5.0
