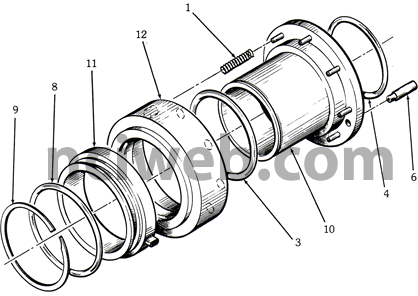

Jensen Type "F" Mechanical Seal Parts Drawing No. S12J-7

Item No. Description Important Notes
1 Spring When Ordering Parts Give:
3 "O" Ring Mixer Model & Serial Number, Item Number,
4 "O" Ring Part Name and Part Drawing Number
6 Drive Pin
8 "O" Ring Please Note that the number of springs
9 Snap Ring will vary depending upon seal bore.
10 Sleeve
11 Stationary Seal Item 13 Wearing Parts Consists of:
12 Rotating Face Items 1, 3, 4, 8, 9, 11 & 12
13 Wearing Parts
